DC/DC CONVERTERS

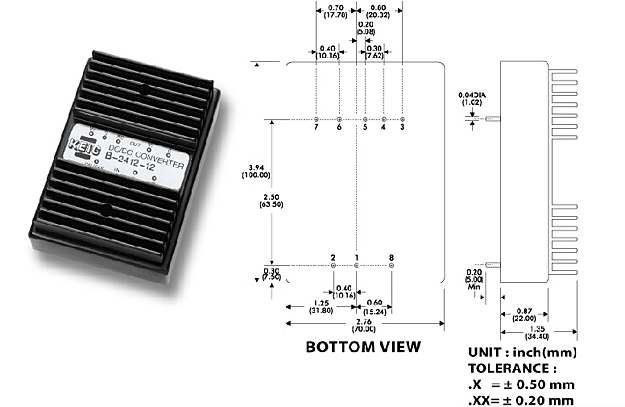

CAse No. : F
Pinout : A
40W DC/DC CONVERTERS
| Model No. | Input Voltage | Output Voltage | Output Current | CASE | |
 |
B-1205 | 12 VCD ( 9-18 ) |
+5 VCD | +8000mA | FA |
| B-1212 | +12 VCD | +3400mA | FA | ||
| B-1215 | +15 VCD | +2700mA | FA | ||
| B-2405 | 24 VCD ( 18-36 ) |
+5 VCD | +8000mA | FA | |
| B-2412 | +12 VCD | +3400mA | FA | ||
| B-2415 | +15 VCD | +2700mA | FA | ||
 |
B-1205-5 | 12 VCD ( 9-18 ) |
+/-5 VCD | +/-4000mA | FA |
| B-1212-12 | +/-12 VCD | +/-1670mA | FA | ||
| B-1215-15 | +/-15 VCD | +/-1340mA | FA | ||
| B-2405-5 | 24 VCD ( 18-36 ) |
+/-5 VCD | +/-4000mA | FA | |
| B-2412-12 | +/-12 VCD | +/-1670mA | FA | ||
| B-2415-15 | +/-15 VCD | +/-1340mA | FA | ||
 |
B-1205-12D | 12 VCD ( 9-18 ) |
+5V/+12V/-12V | 7000/300/300mA | FA |
| B-1205-15D | +5V/+15V/-15V | 6200/300/300mA | FA | ||
| B-1205D-12 | +5V/-5V/+12V | 7000/300/300mA | FA | ||
| B-2405-12D | 24 VCD ( 18-36 ) |
+5V/+12V/-12V | 7000/300/300mA | FA | |
| B-2405-15D | +5V/+15V/-15V | 6200/300/300mA | FA | ||
| B-2405D-12 | +5V/-5V/+12V | 7000/300/300mA | FA |
