DC/DC CONVERTERS
EAse No. : E

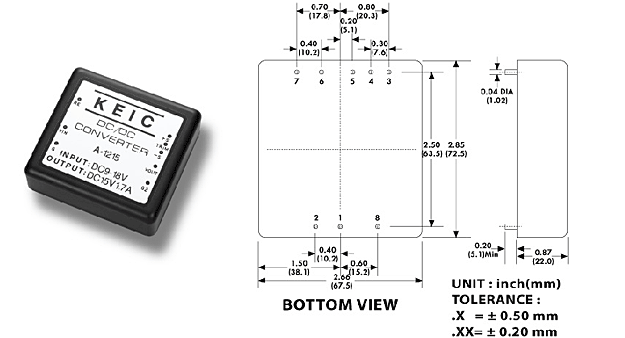

Pinout : A
25W DC/DC CONVERTERS
| Model No. | Input Voltage | Output Voltage | Output Current | EASE | |
 |
A-1205 | +5 VCD | +5000mA | EA | |
| A-1212 | +12 VCD | +2100mA | EA | ||
| A-1215 | +15 VCD | +1700mA | EA | ||
| A-1205 | 24 VCD ( 18-36 ) |
+5 VCD | +5000mA | EA | |
| A-1212 | +12 VCD | +2100mA | EA | ||
| A-1215 | +15 VCD | +1700mA | EA | ||
| A-4805 | 48 VCD ( 36-72 ) |
+5 VCD | +5000mA | EA | |
| A-4812 | +12 VCD | +2100mA | EA | ||
| A-4815 | +15 VCD | +1700mA | EA | ||
 |
A-1205-5 | 12 VCD ( 9-18 ) |
+/-5 VCD | +/-2500mA | EA |
| A-1212-12 | +/-12 VCD | +/-1250mA | EA | ||
| A-1215-15 | +/-15 VCD | +/-1000mA | EA | ||
| A-2405-5 | 24 VCD ( 18-36 ) |
+/-5 VCD | +/-2500mA | EA | |
| A-2412-12 | +/-12 VCD | +/-1250mA | EA | ||
| A-2415-15 | +/-15 VCD | +/-1000mA | EA | ||
 |
A-1205-12D | 12 VCD ( 9-18 ) |
+5V/+12V/-12V | 4000/250/250mA | EA |
| A-1205-15D | +5V/+15V/-15V | 3500/300/300mA | EA | ||
| A-1205D-12 | +5V/-5V/-12V | 4000/300/300mA | EA | ||
| A-2405-12D | 24 VCD ( 18-36 ) |
+5V/+12V/-12V | 3500/250/250mA | EA | |
| A-2405-15D | +5V/+15V/-15V | 3500/300/300mA | EA | ||
| A-2405D-12 | +5V/-5V/-12V | 4000/300/300mA | EA |
