DC/DC CONVERTERS

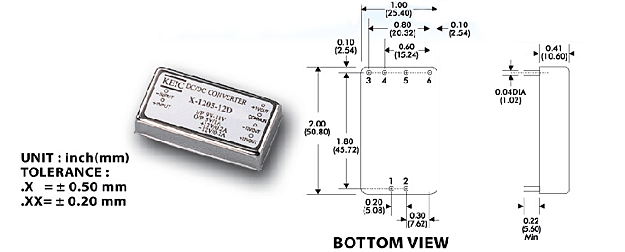

Case No. : L
Pinout : B
10W DC/DC CONVERTERS
| Model No. | Input Voltage | Output Voltage | Output Current | CASE | |
 |
X-1205-12D | 12 VCD ( 9-18 ) |
+5 /+12 / -12 VCD | 1000/200/200mA | LB |
| X-1205-15D | +5 /+15 / -15 VCD | 1000/150/150mA | LB | ||
| X-2405-12D | 24 VCD ( 18-36 ) |
+5 /+12 / -12 VCD | 1000/200/200mA | LB | |
| X-2405-15D | +5 /+15 / -15 VCD | 1000/150/150mA | LB | ||
| X-4805-12D | 48 VCD ( 36-72 ) |
+5 /+12 / -12 VCD | 1000/200/200mA | LB | |
| X-4805-15D | +5 /+15 / -15 VCD | 1000/150/150mA | LB |
