DC/DC CONVERTERS

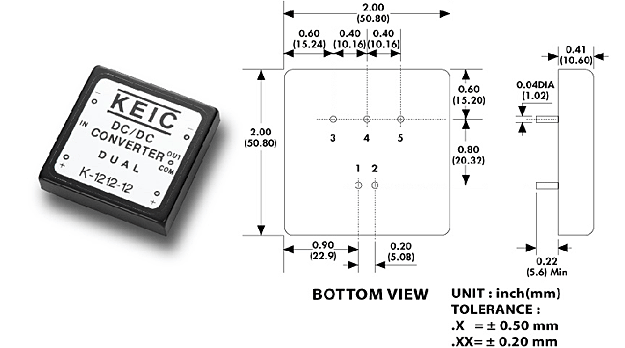

Case No. : C
Pinout : A
10W DC/DC CONVERTERS
| Model No. | Input Voltage | Output Voltage | Output Current | CASE | |
 |
K-1205 | 12 VCD ( 9-18 ) |
+5 VCD | +2000mA | CA |
| K-1212 | +12 VCD | +840mA | CA | ||
| K-1215 | +15 VCD | +664mA | CA | ||
| K-2405 | 24 VCD ( 18-36 ) |
+5 VCD | +2000mA | CA | |
| K-2412 | +12 VCD | +840mA | CA | ||
| K-2415 | +15 VCD | +664mA | CA | ||
 |
K-1205-5 | 12 VCD ( 9-18 ) |
+/-5 VCD | +/-1000mA | CA |
| K-1212-12 | +/-12 VCD | +/-420mA | CA | ||
| K-1215-15 | +/-15 VCD | +/-332mA | CA | ||
| K-2405-5 | 24 VCD ( 18-36 ) |
+/-5 VCD | +/-1000mA | CA | |
| K-2412-12 | +/-12 VCD | +/-420mA | CA | ||
| K-2415-15 | +/-15 VCD | +/-332mA | CA |
