DC/DC CONVERTERS

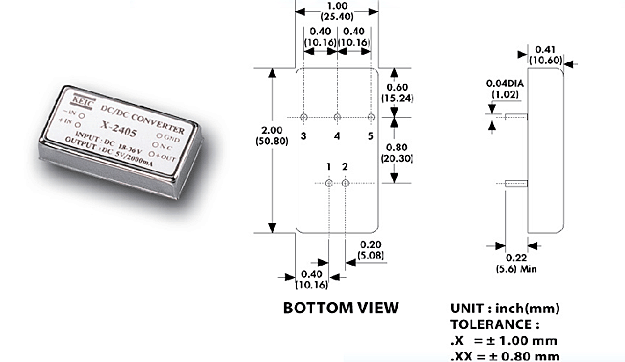

Case No. : L
Pinout : A
10W DC/DC CONVERTERS
  Model No. Input Voltage Output Voltage Output Current CASE
X-1205 12 VCD
( 9-18 )
+5 VCD +2000mA LA
X-1212 +12 VCD +840mA LA
X-1215 +15 VCD +666mA LA
X-1224 +24 VCD +410mA LA
X-2405 24 VCD
( 18-36 )
+5 VCD +2000mA LA
X-2412 +12 VCD +840mA LA
X-2415 +15 VCD +666mA LA
X-2424 +24 VCD +410mA LA
X-4805 48 VCD
( 36-72 )
+5 VCD +2000mA LA
X-4812 +12 VCD +840mA LA
X-4815 +15 VCD +666mA LA
X-4824 +24 VCD +410mA LA
X-1205-05 12 VCD
( 9-18 )
+/- 5 VCD +/- 1000mA LA
X-1212-12 +/- 12 VCD +/- 420mA LA
X-1215-15 +/- 15 VCD +/- 333mA LA
X-1224-24 +/- 24 VCD +/- 210mA LA
X-2405-05 24 VCD
( 18-36 )
+/- 5 VCD +/- 1000mA LA
X-2412-12 +/- 12 VCD +/- 420mA LA
X-2415-15 +/- 15 VCD +/- 333mA LA
X-2424-24 +/- 24 VCD +/- 210mA LA
X-4805-05 48 VCD
( 36-72 )
+/- 5 VCD +/- 1000mA LA
X-4812-12 +/- 12 VCD +/- 420mA LA
X-4815-15 +/- 15 VCD +/- 333mA LA
X-4824-24 +/- 24 VCD +/- 210mA LA
